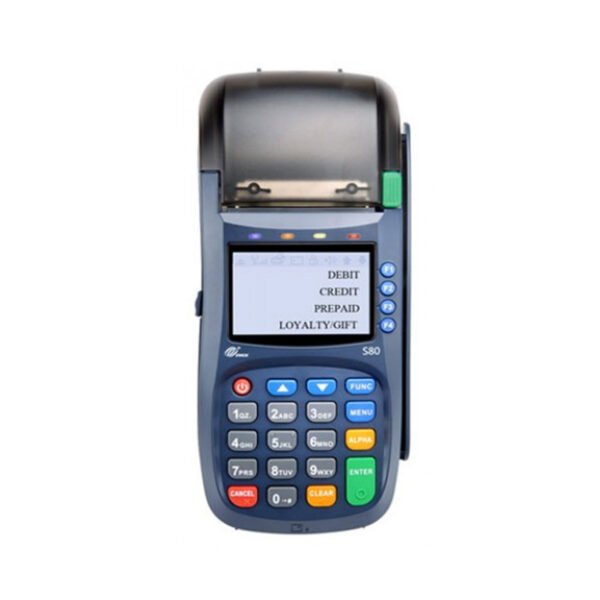

PAX S80

Danh mục: , Từ khóa:

Mô tả

Specifications
Features & Benefits
Processor
32-bit ARM11
Memory
192MB (128MB Flash, 64MB DDR)
Display
2.4 inch 320 x 240 TFT color LCD
Keypad
10 numeric / letter keys, 8 function keys
4 ATM keys, 1 Power ON / OFF key
Printer
Thermal printer, speed: 30 lines per second
Paper roll width / diameter: 58mm / 50mm
Magnetic Card Reader
Track 1 / 2 / 3, bi-directional
Smart Card Reader
EMV L1 & L2 certified
Contactless Card Reader (optional)
MasterCard Contactless & Visa payWave
American Express ExpressPay
Discover D-Pass
JCB J/Speedy
ISO / IEC 14443 Type A / B,
Mifare®, Felica, NFC
4 RF Indicators
Communication
Modem: Sync. (HDLC, up to 9600bps)
Asnyc. (V.92, up to 56kbps)
Ethernet
Peripheral Ports
1 x PINPad, 1 x RS232, 1 x Ethernet
1 x Line, 1 x Mini USB (OTG), 1 x Power port
Security
PCI PTS 4.x approved
DUKPT, Master / Session, 3DES
ANSI / ISO9564 format 0, 1, 3
PIN ciphered key algorithm
ANSIX9.9 / X 9.19 MAC algorithm
Environmental
0°C to 50°C (32°F to 122°F) operating temperature
-20°C to 70°C (-4°F to 158°F) storage temperature
10% to 93% relative humidity, non-condensing
Voltage
Input: 100~240VAC, 50Hz / 60Hz, 1.5A
Output: 9VDC, 1A
Physical
Length: 8.50inches
Width: 3.74inches
Height: 3.39inches
Weight
18.52oz
Certications
PCI PTS 4.x
EMV L1 & L2
MasterCard Contactless
Visa payWave
American Express ExpressPay
Discover DPAS
JCB J/Speedy
